AISI 8620 Steel’s Mechanical Properties-Solar Special Steel International Limited
From: Author:ss@solarsteel.cn Publish time:2021-10-18 11:21 Clicks:25
AISI 8620 alloy steel is forged to approximately 1700ºF(925ºC) at approximately 1230ºC before being hardened or carburized.
|
Grade |
C(％) |
Si(％) |
Mn(％) |
P(％) |
S(％) |
Cr(％) |
Mo(％) |
|
8620 |
0.18-0.23 |
0.15-0.35 |
0.70-0.90 |
≤0.035 |
≤0.04 |
0.40-0.60 |
0.15-0.25 |
|
Grade |
C(％) |
Si(％) |
Mn(％) |
P(％) |
S(％) |
Cr(％) |
Mo(％) |
|
1.6523 |
0.17-0.23 |
≤0.4 |
0.65-0.95 |
≤0.025 |
≤0.035 |
0.35-0.70 |
0.15-0.25 |
|
Grade |
C(％) |
Si(％) |
Mn(％) |
P(％) |
S(％) |
Cr(％) |
Mo(％) |
|
1.7225 |
0.38～0.45 |
≤0.40 |
0.60～0.90 |
≤0.025 |
≤0.035 |
0.90～1.20 |
0.15～0.30 |
|
Grade |
C(％) |
Si(％) |
Mn(％) |
P(％) |
S(％) |
Cr(％) |
Mo(％) |
|
4140 |
0.38～0.43 |
0.15～0.35 |
0.75～1.00 |
≤0.035 |
≤0.04 |
0.80～1.10 |
0.15～0.25 |
|
Grade |
C(％) |
Si(％) |
Mn(％) |
P(％) |
S(％) |
Cr(％) |
Mo(％) |
|
SCM440 |
0.38～0.43 |
0.15～0.35 |
0.60～0.85 |
≤0.03 |
≤0.03 |
0.90～1.20 |
0.15～0.30 |
|
Grade |
C(％) |
Si(％) |
Mn(％) |
P(％) |
S(％) |
Cr(％) |
Mo(％) |
|
EN19 |
0.36～0.44 |
0.10～0.35 |
0.70～1.00 |
≤0.035 |
≤0.035 |
0.90～1.20 |
0.15～0.35 |
Mechanical properties of AISI 8620 steel:
|
Sectional dimension |
11MM |
30MM |
63MM |
|
Tensile strength Mpa |
980-1270 |
780-1080 |
690-930 |
|
Yield strength Mpa |
≥785 |
≥590 |
≥490 |
|
Elongation% |
≥9 |
≥10 |
≥11 |
|
Charpy impact J |
≥41 |
≥41 |
≥41 |
|
Hardness HB |
290-375 |
235-320 |
205-275 |
|
Hardness HRC |
31-41 |
23-35 |
16-29 |
AISI 8620 steel forging process:
The forging temperature should be between 925℃ and 1230℃. AISI 8620 has a low carbon content and is less likely to break than medium or high carbon steel, so it can be heated and cooled more quickly.It should be as short as possible to avoid scaling and excessive grain growth.The lower the forging end temperature is, the finer the grain size is.Do not forge below the minimum forging temperature below 850°C.The alloy should be cooled in sand.

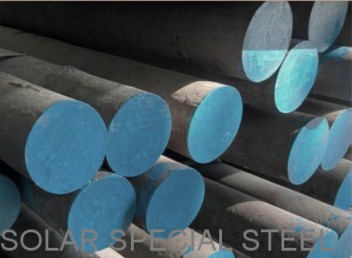

Solar Special Steel International Limited are a professional supplier of 8620 steel and other special steel.We can supply steel tubes in various shapes, such as plate, flat, round, hexagonal and seamless tubes.
Welcome you to inquiry more information about AISI 8620 STEEL .
