Hot Working Tool Steel DIN 1.2329 / Solar Special Steel International Limited
From: Author:ss@solarsteel.cn Publish time:2021-10-20 16:32 Clicks:27
|
Grade |
C |
Si |
Mn |
P |
S |
Mo |
Cr |
V |
Ni |
|
1.2329 |
0.43-0.48 |
0.60-0.75 |
0.65-0.85 |
≤0.025 |
≤0.015 |
0.25-0.35 |
1.65-1.85 |
0.17-0.22 |
0.50-0.60 |
1.2329 Hot working tools have high strength, toughness, good hardenability and stability against overheating, but high white spot sensitivity and temper brittleness.Poor weld-ability, need to be preheated by high temperature before welding, need to eliminate stress after welding, use after conditioning.
What is the specification of 1.2329 steel we can offer you ?
|
Product |
Thickness /Diameter |
Width mm |
Length mm |
Condition |
TESTING |
|

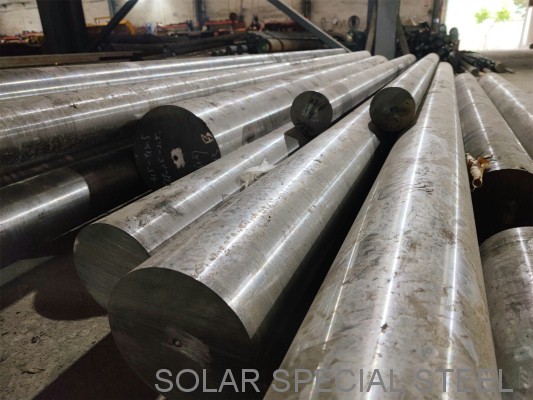

ROUND |
10-80 |
/ |
3000-5800 |
HOT ROLLED & BLACK SURFACE |
Ultrasonic Testing by C/c under to Standard 1921-84 |
|
ROUND |
80-350 |
/ |
3000-5800 |
FORGED & BLACK SURFACE |
Ultrasonic Testing by D/d under to Standard 1921-84 |
|

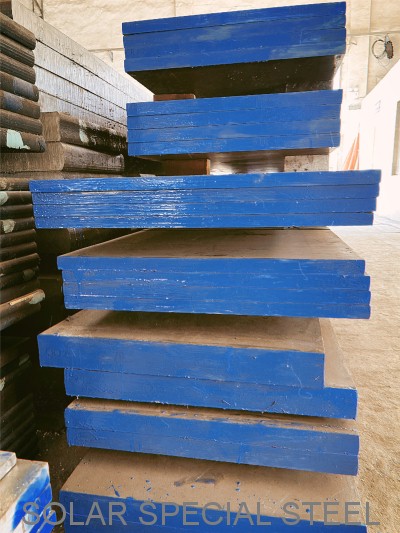

FLAT BAR |
10-80 |
310-810 |
3000-5800 |
HOT ROLLED & BLACK SURFACE |
Ultrasonic Testing by C/c under to Standard 1921-84 |
|
FLAT BAR |
80-350 |
310-810 |
3000-5800 |
FORGED & BLACK SURFACE |
Ultrasonic Testing by D/d under to Standard 1921-84 |
Packaging Details : depend on the customer’s request
Delivery Time : 45-55days
Payment Terms : T/T,L/C at sight.
MOQ : ≥1000KGS
Surface Condition : Black surface &Bright surface
HEAT TREATMENT AND HARDNESS FOR TOOL STEEL 1.2329:
- Quenching temperature ℃ ±10℃: 880~920
- Cooling medium: air / oil
- Tempering temperature ℃ ±10℃ :
MELTING PROCESS of 1.2329 STEEL :
This alloy is generally smelt in electric arc furnace (EAF ) or IFF + VD, LF + Electroslag remelting (ESR).
For a purpose of higher quality, it should be smelt via technology of vacuum refining.
TYPICAL APPLICATIONS of 1.2329 STEEL :
- Alloy tool steel is widely used to produce the cutting tool, cold/heat distortion mould and measuring implements and further to manufacture the piston, valve, valve seat of fuel pump of diesel engine.
- Cutlery for medical equipments
- Cutting tools
- Mechanical parts
- Air hammer tools
- Piercing tools
