AISI 8620 steel-Solar Special Steel International Limited
From: Author:ss@solarsteel.cn Publish time:2021-10-18 10:45 Clicks:27
|
Grade |
C(％) |
Si(％) |
Mn(％) |
P(％) |
S(％) |
Cr(％) |
Mo(％) |
|
8620 |
0.18-0.23 |
0.15-0.35 |
0.70-0.90 |
≤0.035 |
≤0.04 |
0.40-0.60 |
0.15-0.25 |
Steel AISI 8620 is suitable for applications requiring a combination of toughness and wear resistance.
AISI 8620 steel supply range in China Marketing as the below mention :
- AISI 8620 steel round rod: diameter 8mm-3000mm

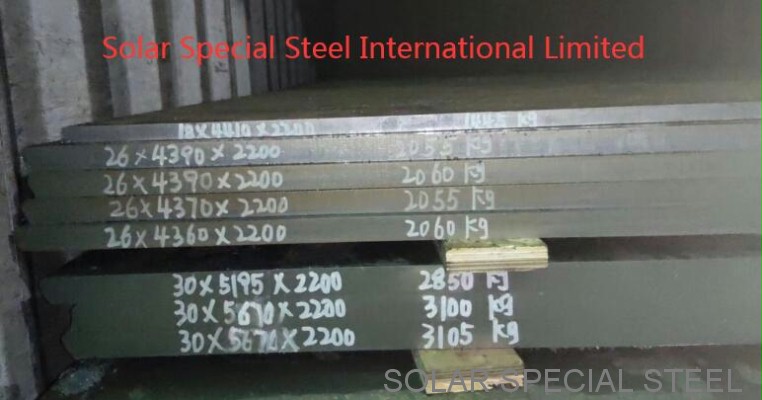

- AISI 8620 steel plate: thickness 10mm-1500mm width 200mm-3000mm
- AISI 8620 steel square bar: 20mm-500mm
- AISI 8620 steel 8620 tubes are also available according to your detailed requirements.
AISI 8620 steel heat treatment
- Annealing:
AISI 8620 steel can be fully annealed by heating to 820℃ -850 ℃ until the temperature is uniform throughout the section and cooled in the furnace or air-cooled.
- Tempering:
Heat treatment of 8620 steel and tempering of water quenched parts (non-carburized) are performed at 400 ° F to 1300 ° F to improve surface toughness with minimal impact on hardness.
This will also reduce the possibility of grinding cracks.
- Hardening:
AISI 8620 steel will undergo Austenitizing at about 840°C to 870°C, followed by oil or water quenching depending on section size and complexity.It needs to be cooled in air or oil.
The normalization of1675ºF(910ºC) and air cool.This is another way to improve the machined-ability of 8620 materials.
Normalizing can also be used before the surface is hardened.
AISI 8620 Steel ‘s Applications are: shafts, bearings, bushings, camshafts, differential pinions, guide pins, king pins, piston pins, gears, spline shafts, ratchets, sleeves and other applications, it is helpful that steel can be easily machined and carburized to control the depth of the case.
